Home Cube Series
LOW VOLTAGE ESS
Compact LV LiFePO4 Battery for Residential Energy StorageKey Features
• 51.2V low-voltage battery system
• LiFePO4 battery chemistry
• 5.12kWh
• 6000 cycles
• Bluetooth and Wi-Fi monitoring
• Suitable for residential solar storage
• Support maximum 15 units parallel
DATASHEET
Cube 5 Technical Parameters

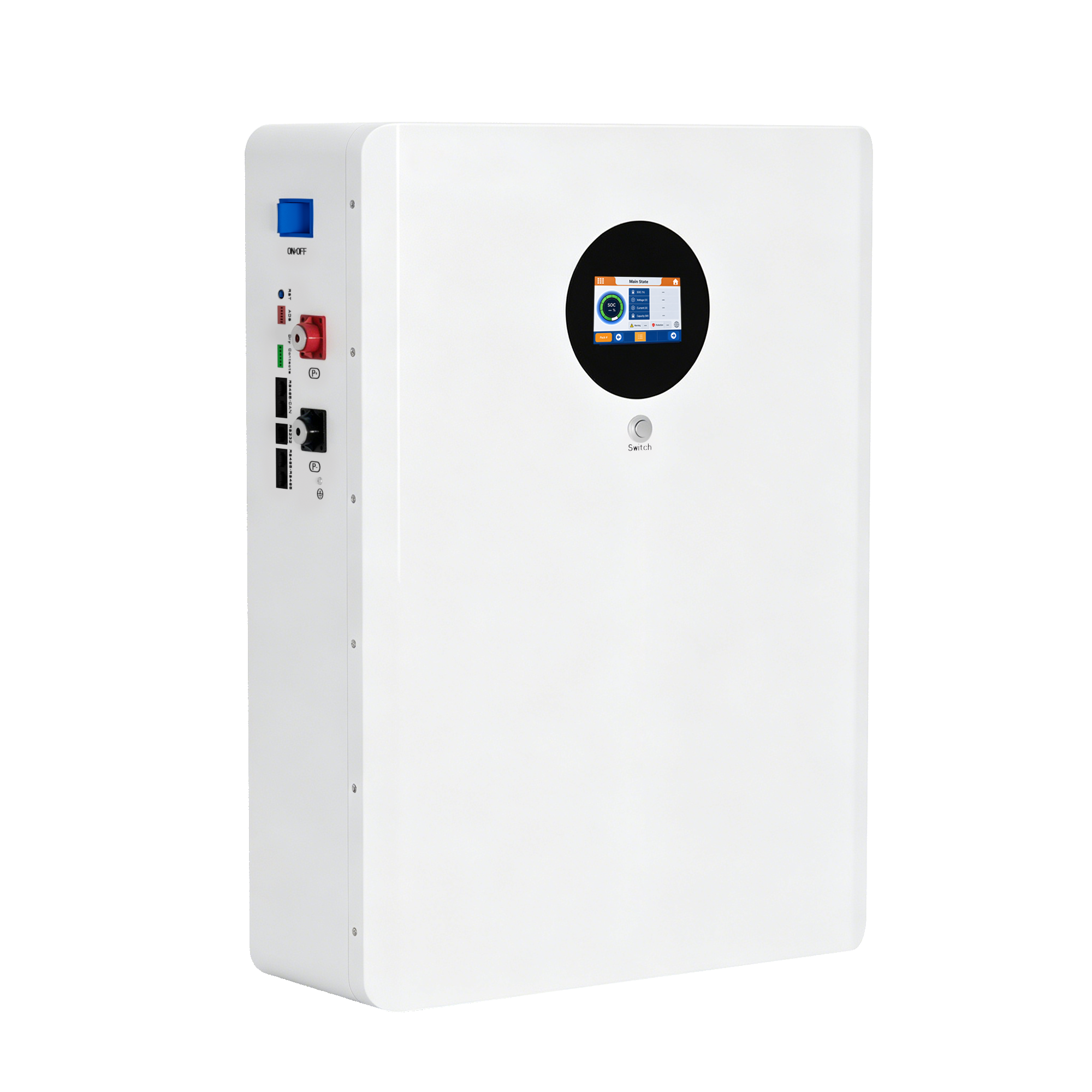

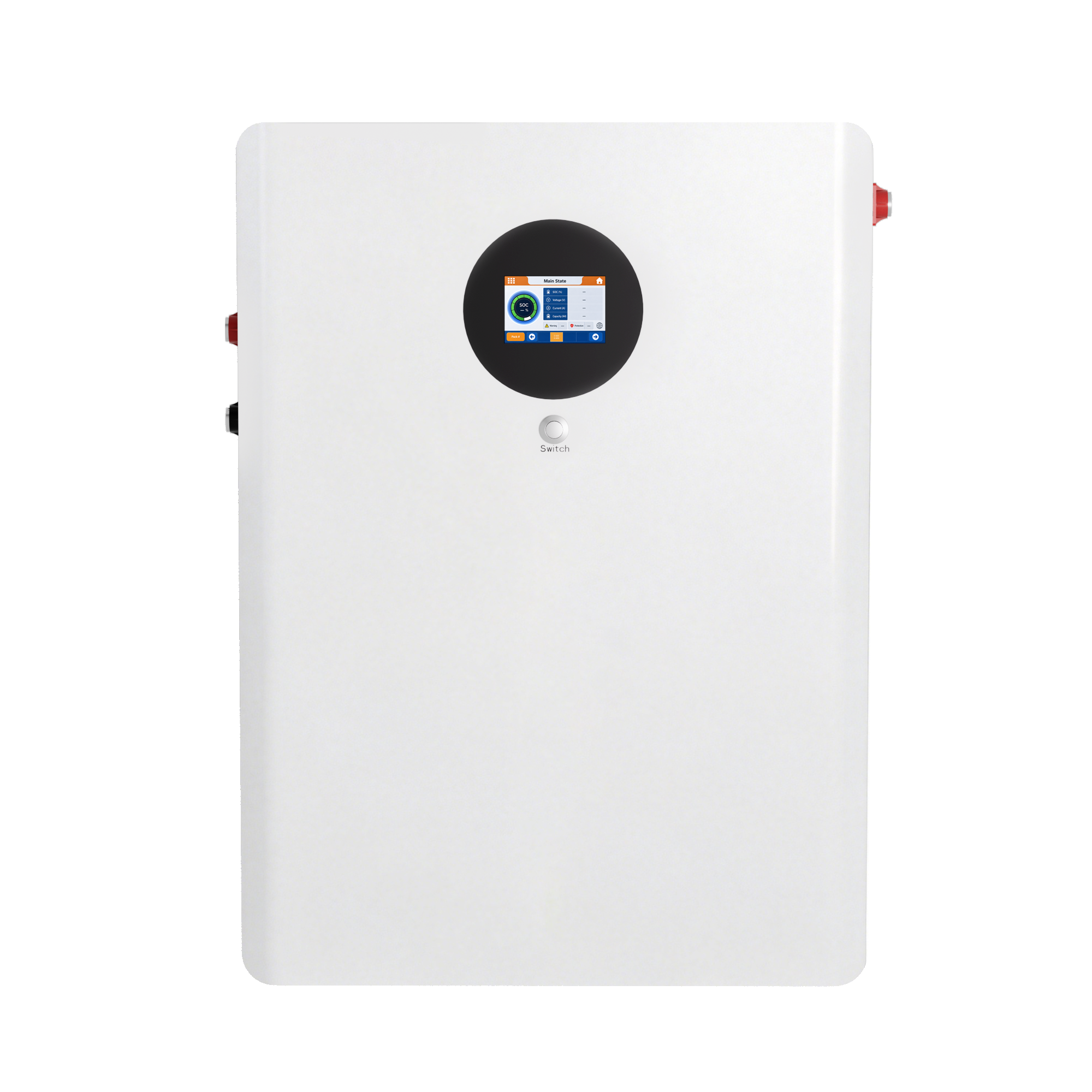

Cube 5 is a 51.2V low-voltage LFP battery designed for residential energy storage applications, supporting wall-mounted or floor-standing installation.
Product Model
H-Cube-W5
Nominal Energy
5.12kWh
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Cell Type
LFP
Standard Charge Voltage
56.8V
Max. Charge / Discharge Current
100A
Discharge Cut-Off Voltage
44.8V
Parallel Function
Max. 16 / 33 / 64 Optional
Communication Interface
USB / RS485 / CAN
Cycle Life
>8000 Cycles
Charge Temperature Range
0~55 ℃
Discharge Temperature Range
-20~55 ℃
Dimensions
480 × 600 × 155mm
Excluding wall-mounted brackets
Net Weight
51kg
Installation Method
Wall-Mounted / Floor Standing
Warranty
5 Years Warranty
10 years design life
Energy Throughput
22MWh
Display
RGB LED Light / 3.2″ LCD Touch Screen
Certification
Pack: CEI 0-21 / CE / IEC 62619 / UL1973 by Intertek / MSDS / UN38.3
Cell: UL1642 / IEC 62619 / CEMC / ROHS / MSDS / UN38.3
Cell: UL1642 / IEC 62619 / CEMC / ROHS / MSDS / UN38.3
Optional
Circuit Breaker / Wi-Fi Remote Monitoring
