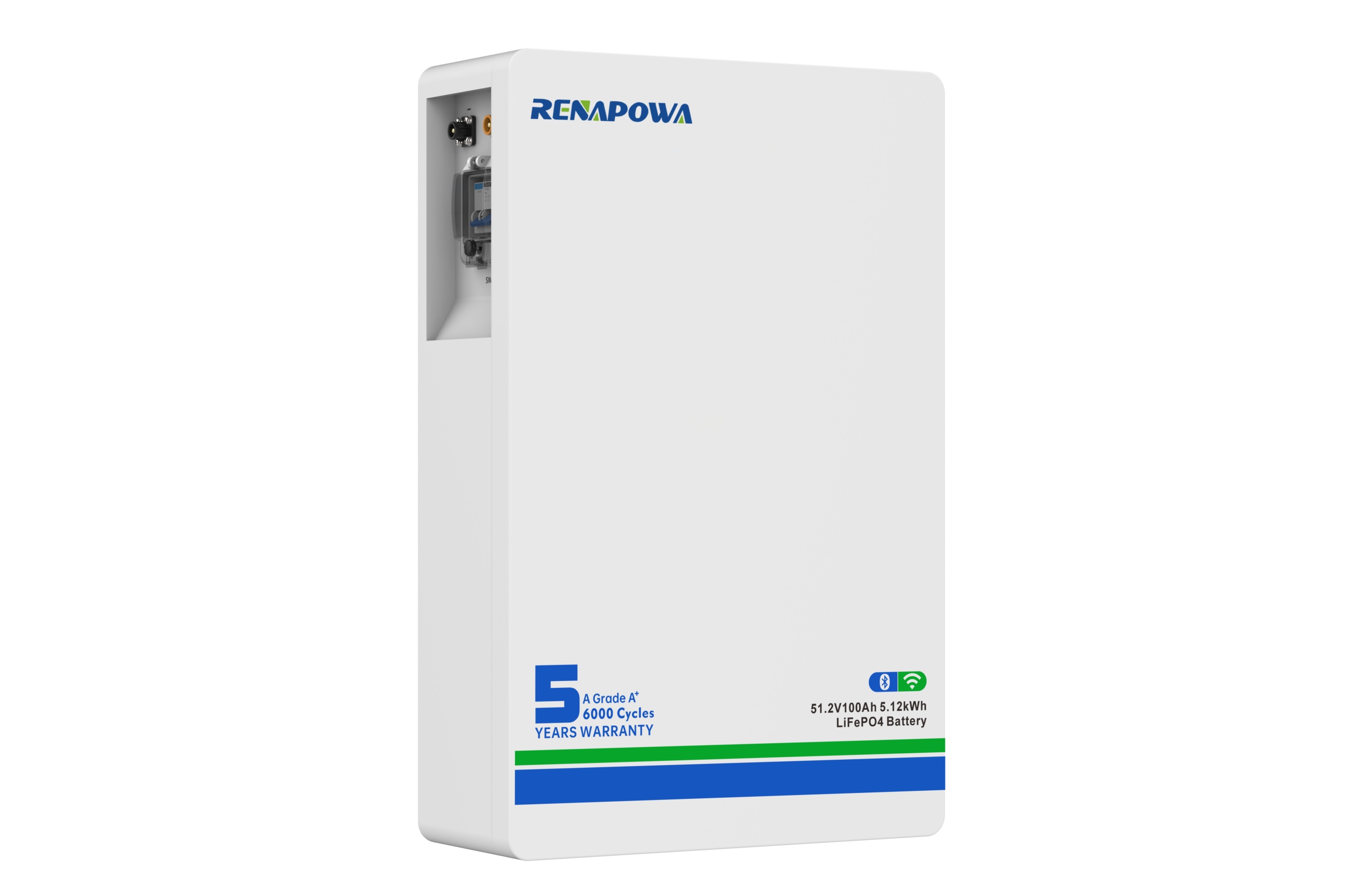

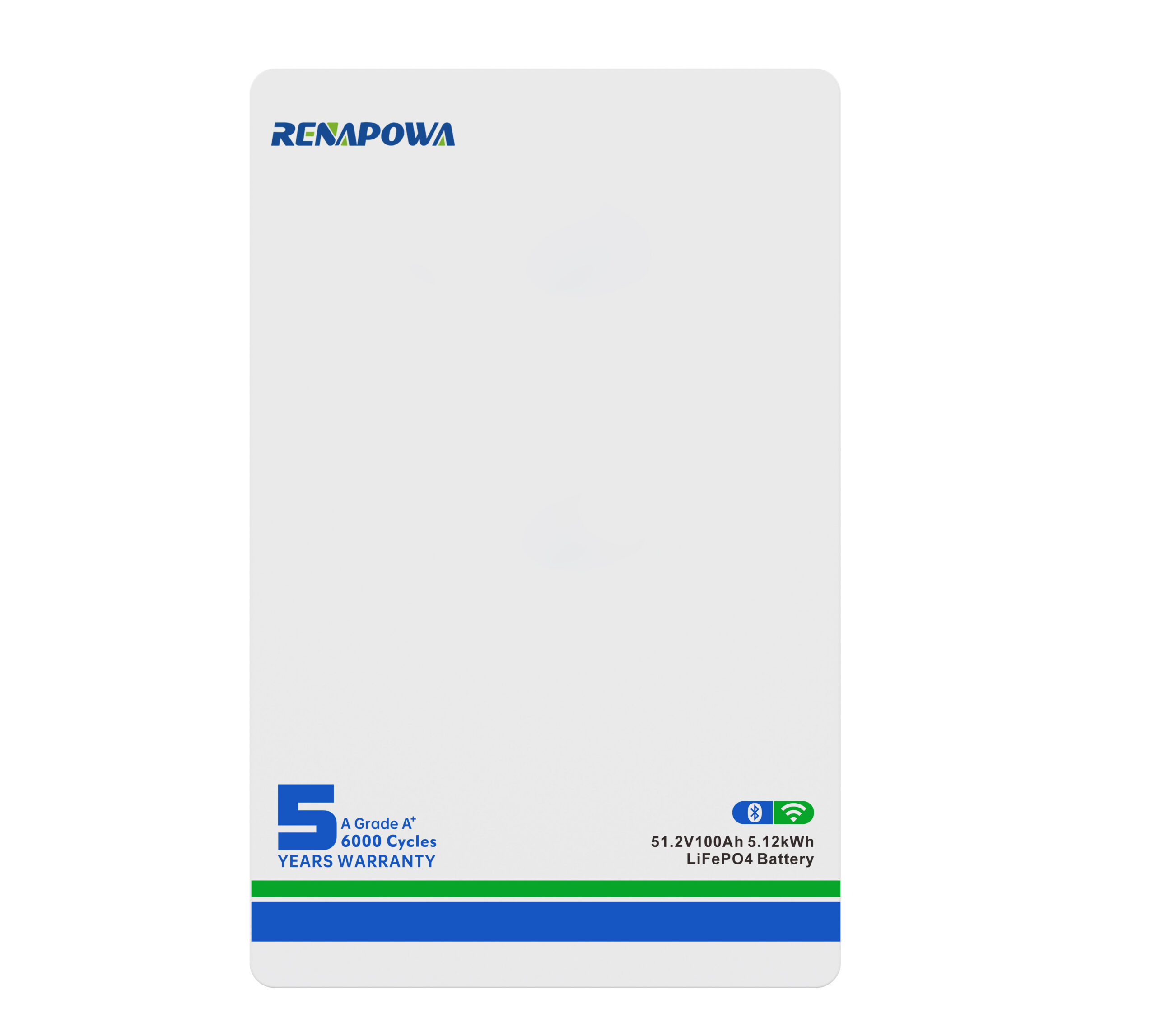

Home Cube Pro Series
IP65 LOW-VOLTAGE RESIDENTIAL ESS
Durable LiFePO₄ Battery Designed for Indoor and Outdoor Energy StorageKey Features
• 51.2V low-voltage battery system
• LiFePO4 battery chemistry
• 5.12kWh
• 6000 cycles
• Bluetooth and Wi-Fi monitoring
• IP65-rated protection against dust and water
• Support maximum 15 units parallel
DATASHEET
Cube-5-Pro Technical Parameters
Cube-5-Pro is a 51.2V low-voltage LiFePO4 battery designed for residential energy storage, offering compact installation, stable performance and IP65 protection for reliable daily use.
Product Model
Cube-5-Pro
Rated Voltage51.2V
Rated Capacity100Ah
Rated Energy5.12kWh
Output Voltage Range43.2V~58.4V
Charging Voltage57.6~58.4V
Cut-Off Voltage43.2V
Max. Charging Current100A
Recommended Charging Current50A
Max. Discharging Current100A
Efficiency>98%
Dimension LWH700 × 450 × 180mm
Weight≈53kg
Humidity5%~95% RH
Charging Temperature0℃~55℃
Discharging Temperature-20℃~60℃
Storage Temperature-10℃~30℃
Cycle Life>6000 times0.2C, @25℃, 80% DOD
Design Life>10 years
Warranty Life5 years
IP RatingIP65
