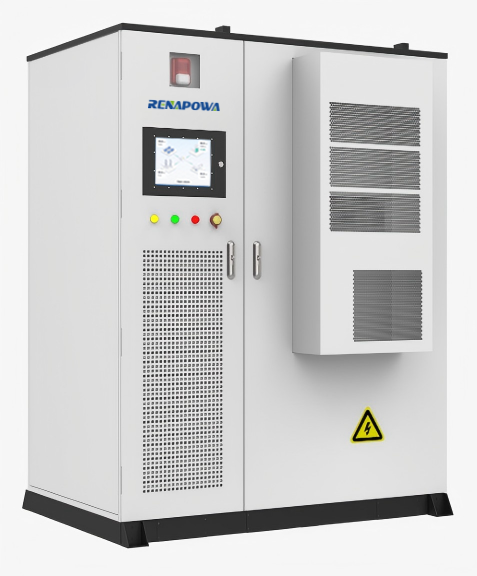

AIO Series
Outdoor All-in-One Energy Storage System
Integrated Solar and Battery Storage, Built for C&I ApplicationsKey Features
• 241kWh nominal battery capacity
• 696–864V DC operating voltage range
• 314Ah LiFePO₄ battery cells
• 180A rated current
• 200A maximum current
• Integrated MPPT solar input
• 200–850V MPPT voltage range
• Up to 94% system efficiency
• 95% depth of discharge
• ≥8,000 cycle life
• Intelligent air-cooling system
• IP54-rated outdoor protection
• Ethernet, 4G, RS485 and Bluetooth communication
• Multi-level fire protection and safety monitoring
• Compatible with multiple leading inverter platforms
DATASHEET
AIO-241 Technical Parameters
AIO-241 is an all-in-one energy storage system integrating LiFePO4 battery, PV input, cooling, fire protection and system monitoring for reliable C&I energy storage applications.
Product Model
AIO-241
Battery
Battery Type
LiFePO4
Max. Current
200A
Battery Capacity
314Ah
Voltage Range
696~864Vdc
PACK Configuration
1P16S*15
Nominal Capacity
241kWh
Rated Current
180A
Model
AIO-241
PV
MPPT Volt Range
200V~850V
Start Volt
250V
Max. PV Current
200A / 60A*4
System
Weight
Approx. 2500kg
Dimension (W/D/H)
1740 / 1100 / 2330mm
Max. Efficiency
94%
Air Conditioner Power
5kW
Operating Temperature
-20~50℃
Derating above 45℃
Operating Humidity
0~95% RH
Non-condensing
Ingress Protection
IP54
Anti-corrosion Grade
C3
Cooling Method
Air-cooling
Certification
UN38.3
Elevation
3000m
Derating above 2000m
Depth of Discharge
95%
Communication
Ethernet / 4G / RS485 / Bluetooth
Cycle Life*
≥8000 Cycles
Protection
Aerosol, water fire system, multi-sensor / water ingress,
audible & visual alarm, explosion-proof ventilation
Compatible Inverters
Solis / Megarevo / Solis / SOSEN / SOUNTEG / Deye / Growatt
Note
Operating conditions: 0.5C charging & discharging, @25℃, 90% DOD
